รายละเอียด

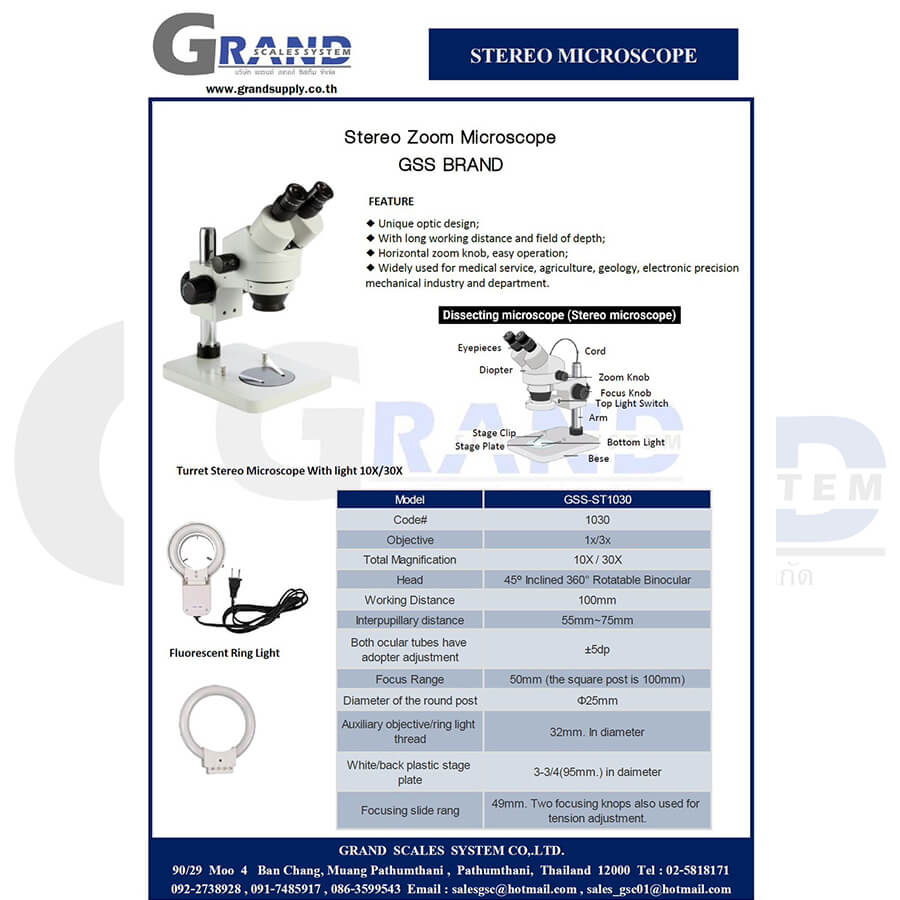

STEREO MICROSCOPE

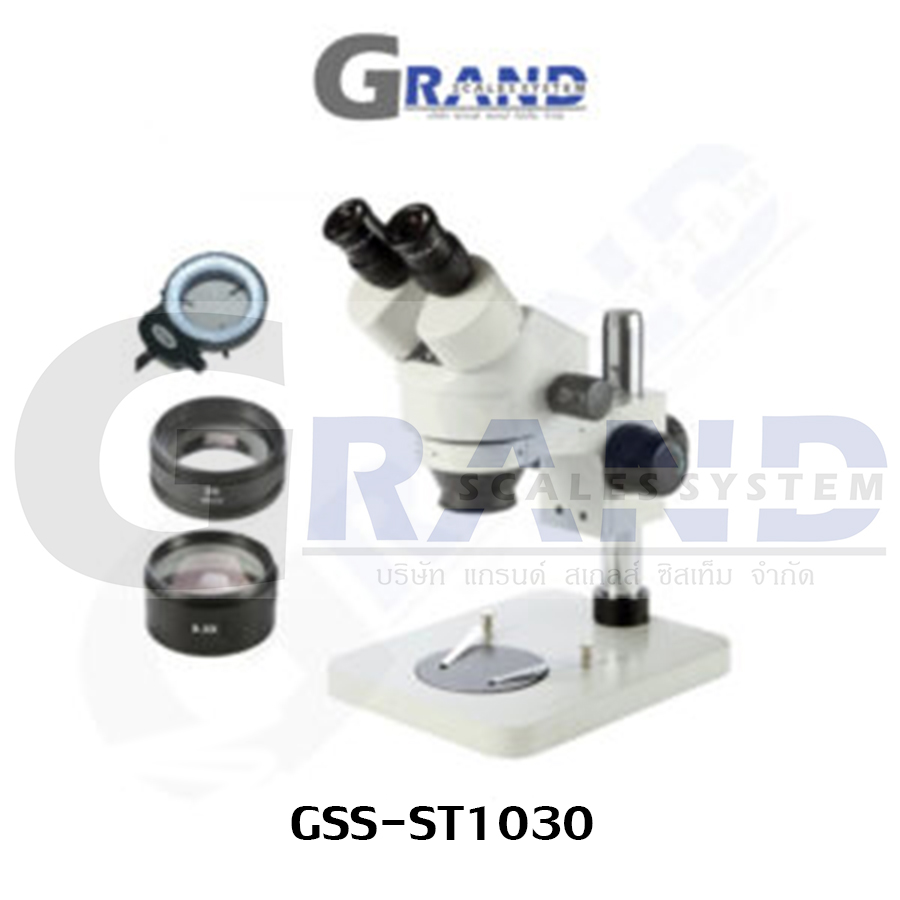

Model : GSS-ST1030
◆ High Quality optical system, and optical components coated with special coating created a high-quality optical system.
◆ Standard magnification 7-45x
◆ Long Working distance to create enough space for the uses
◆ Suit to ergonomic design, feel less fatigue when long time use
| Model | GSS-ST1030 |
| Code# | 1030 |
| Objective | 1x / 3x |
| Total Magnification | 10x / 30x |
| Head | 45° Inclined 360° Rotatable Binocular |
| Working Distance | 100mm |
| Interpupillary distance | 55mm~75mm |
| Both ocular tubes have adopter adjustment | ±5dp |
| Focus Range | 50mm (the square post is 100mm) |
| Diameter of the round post | Φ25mm |
| Auxiliary objective/ring light thread | 32mm. In diameter |
| White/back plastic stage plate | 3-3/4(95mm.) in daimeter |
| Focusing slide rang | 49mm. Two focusing knops also used for tension adjustment. |
